linear rail guide slide

The linear rail guide slide represents a fundamental component in modern industrial automation and precision manufacturing systems. This sophisticated mechanical device provides accurate linear motion guidance for various applications requiring smooth, controlled movement along a straight path. A linear rail guide slide consists of a precision-machined rail track paired with a sliding carriage or block that moves along the rail using ball bearings or roller elements. The system operates on the principle of rolling friction rather than sliding friction, which significantly reduces wear and ensures consistent performance over extended periods. The rail itself features precisely ground raceways that accommodate steel balls or rollers housed within the carriage assembly. This design creates multiple contact points between the moving elements, distributing loads evenly and maintaining exceptional accuracy throughout the motion cycle. The linear rail guide slide incorporates advanced sealing systems to protect internal components from contaminants such as dust, debris, and moisture. These seals extend operational life while maintaining smooth operation in challenging industrial environments. The technology behind linear rail guide slide systems has evolved to include various preload options, allowing engineers to eliminate backlash and optimize stiffness for specific applications. Different rail profiles and carriage designs accommodate varying load capacities, from light-duty positioning tasks to heavy-duty industrial applications. The linear rail guide slide features standardized mounting configurations that simplify installation and integration into existing machinery. Lubrication systems, either integrated or external, ensure optimal performance and longevity. Advanced materials and heat treatment processes enhance durability and dimensional stability under varying temperature conditions. The precision manufacturing of linear rail guide slide components ensures repeatability within micrometers, making them essential for applications requiring exact positioning. These systems support both horizontal and vertical mounting orientations, providing flexibility in machine design. The modular nature of linear rail guide slide systems allows for easy customization and scalability to meet specific application requirements.

New Product Releases

VIEW DETAILS

WC/WCS series linear shaft

VIEW DETAILS

SFU series ball screw

VIEW DETAILS

FF series ball screw end support

VIEW DETAILS

HGH Series Linear Guideway

Linear rail guide slide systems deliver exceptional precision that surpasses traditional sliding mechanisms by maintaining accuracy within micrometers over extended operational periods. This precision stems from the rolling element design that eliminates stick-slip motion common in conventional sliding systems. Users experience consistent positioning accuracy that remains stable even after millions of cycles, ensuring reliable performance in critical applications. The reduced friction characteristics of linear rail guide slide systems translate directly into energy savings and improved system efficiency. Rolling friction requires significantly less force to initiate and maintain motion compared to sliding friction, reducing motor requirements and extending component life. This efficiency improvement becomes particularly valuable in high-speed applications where traditional systems would generate excessive heat and wear. Maintenance requirements decrease substantially with linear rail guide slide implementation, as the sealed bearing design protects internal components from environmental contamination. The self-contained lubrication systems reduce the need for frequent maintenance interventions, lowering operational costs and minimizing downtime. Users benefit from predictable maintenance schedules rather than reactive repairs, improving production planning and reducing unexpected expenses. Load capacity advantages make linear rail guide slide systems suitable for demanding applications where traditional guides would fail. The distributed load design allows these systems to handle both radial and moment loads simultaneously, providing superior stability during operation. This capability enables machine designers to create more compact systems without sacrificing performance or reliability. Speed capabilities of linear rail guide slide systems exceed those of conventional alternatives, enabling faster production cycles and improved throughput. The low friction design allows for higher velocities while maintaining accuracy, particularly beneficial in packaging, assembly, and material handling applications. Acceleration and deceleration rates improve significantly, enhancing overall machine productivity. Installation flexibility represents another key advantage, as linear rail guide slide systems adapt to various mounting configurations and spatial constraints. The standardized interfaces simplify integration with existing equipment while providing options for future modifications or upgrades. This adaptability reduces engineering time and costs during both initial installation and subsequent system modifications. Temperature stability ensures consistent performance across varying environmental conditions, maintaining accuracy and smooth operation from sub-zero to elevated temperatures. This reliability proves essential in applications spanning outdoor equipment, food processing, and high-temperature manufacturing environments where dimensional stability directly impacts product quality and operational success.

Latest News

Jan

What is a linear bearing and how does it work in 2026?

A linear bearing represents one of the most fundamental mechanical components in modern industrial automation and precision machinery. These specialized devices enable smooth, controlled linear motion along a predetermined path, making them indispens...

Feb

Withstand Daily Abuse: Custom Heavy-Duty Sliding Rails Protected by Durable Nickel Plating.

Industrial applications demand precision components that can withstand extreme conditions while maintaining consistent performance over extended periods. Heavy-duty sliding rails represent a critical element in manufacturing equipment, automation sys...

Feb

How does linear bearing design affect machine performance?

The performance of industrial machinery depends heavily on the quality and design of its fundamental components, with linear bearing systems playing a crucial role in determining overall operational efficiency. Modern manufacturing environments deman...

Mar

Meet Semiconductor Precision Demands: Custom Electroplating Processes for High-End Linear Guide Rails.

Semiconductor manufacturing represents one of the most demanding precision environments in modern industry, where component tolerances measured in nanometers can determine the success or failure of entire production lines. Within this exacting landsc...

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

linear rail guide slide

bearing linear slide

linear rail guides

miniature linear slide

mini linear slide

linear rail guide slide

roller bearing slide rails

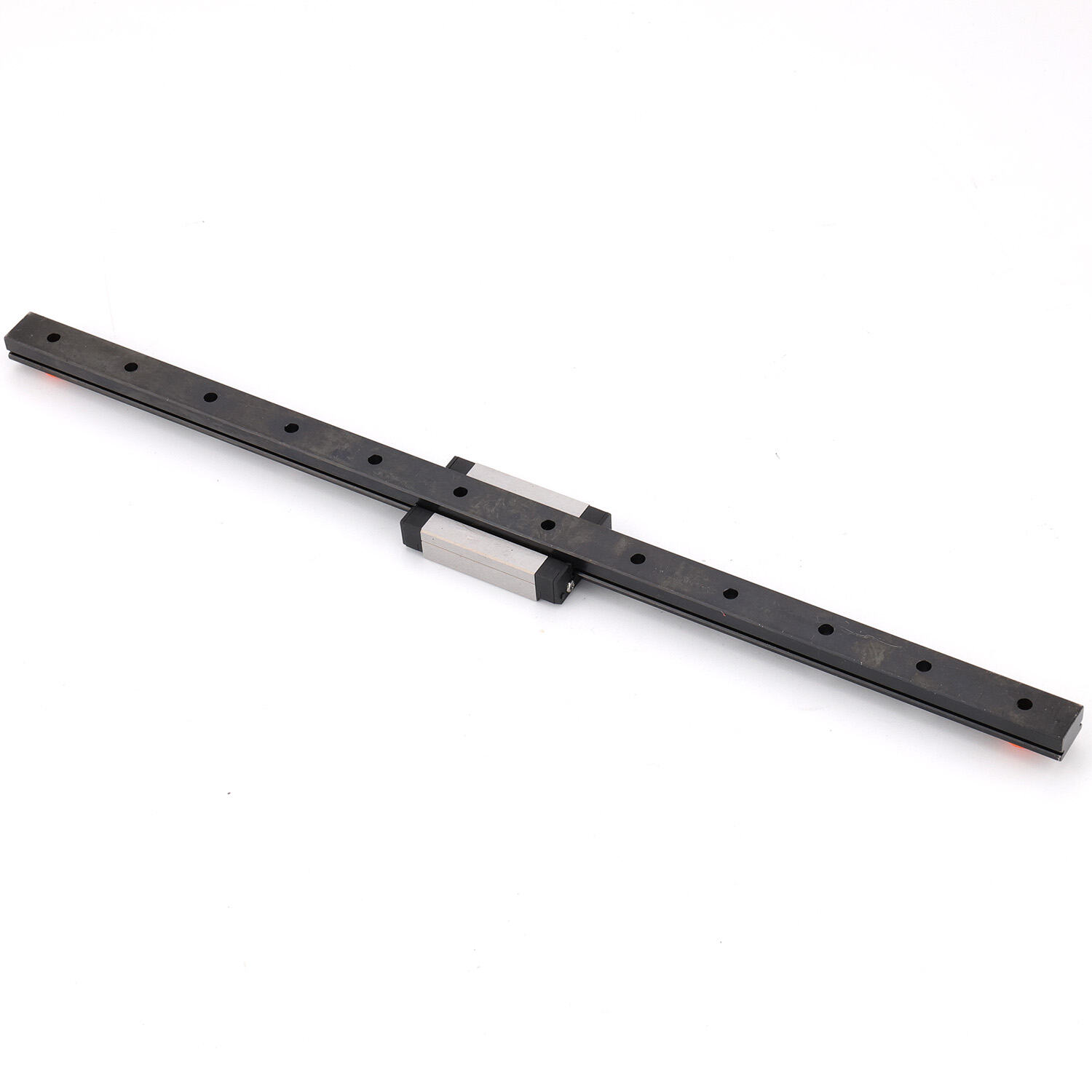

Superior Precision and Accuracy Control

The linear rail guide slide achieves unprecedented precision through its advanced ball bearing raceway design, delivering positioning accuracy that consistently maintains tolerances within single-digit micrometers. This exceptional precision results from the carefully engineered contact geometry between the steel balls and the precision-ground raceways, creating multiple contact points that distribute forces evenly while eliminating play and backlash. The preload adjustment capability allows engineers to optimize the system stiffness and eliminate any clearance between the rolling elements and raceways, ensuring zero lost motion during direction changes. This feature proves particularly crucial in applications such as CNC machining centers, coordinate measuring machines, and semiconductor manufacturing equipment where even microscopic positioning errors can result in significant quality issues or production failures. The linear rail guide slide maintains this precision throughout its operational life due to the rolling motion principle that minimizes wear compared to sliding contact systems. Advanced materials and heat treatment processes ensure dimensional stability under varying thermal conditions, preventing accuracy degradation that commonly affects less sophisticated guidance systems. The raceway surfaces undergo specialized grinding and polishing processes that achieve surface roughness values measured in nanometers, contributing to smooth motion and extended component life. Quality control measures during manufacturing include laser interferometry verification of straightness and parallelism, ensuring each linear rail guide slide meets stringent accuracy specifications before shipment. Temperature compensation features in premium versions automatically adjust for thermal expansion, maintaining accuracy even when ambient temperatures fluctuate significantly during operation. The rigid construction and optimized geometry provide excellent resistance to deflection under load, preserving accuracy even when subjected to varying force conditions. This precision advantage translates into improved product quality, reduced scrap rates, and enhanced capability to meet increasingly demanding tolerance requirements in modern manufacturing applications. Users report measurable improvements in part quality and process capability indices when upgrading from conventional sliding systems to linear rail guide slide technology.

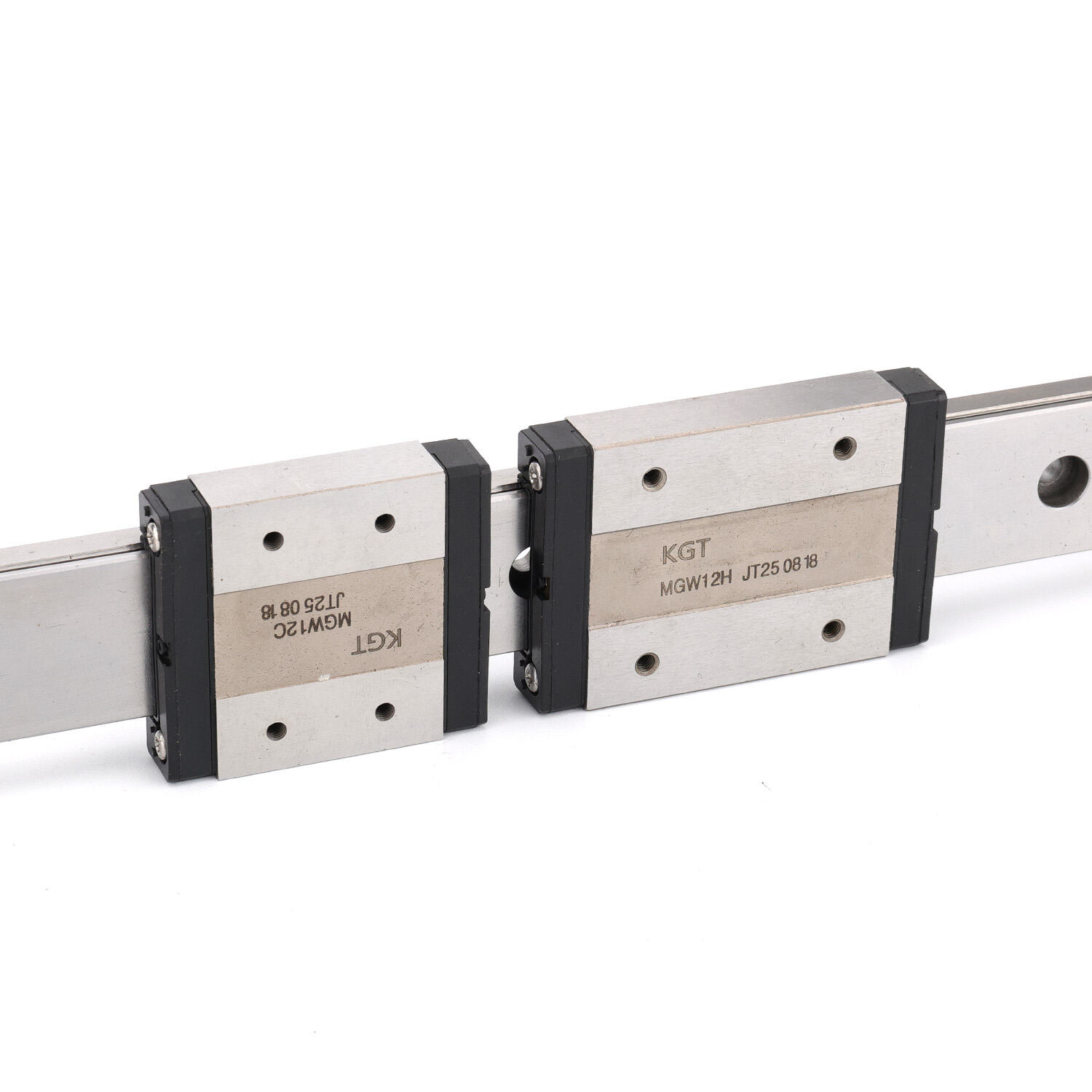

Enhanced Load Capacity and Structural Rigidity

Linear rail guide slide systems demonstrate exceptional load-bearing capabilities through their innovative four-row ball bearing configuration that distributes forces across multiple load paths simultaneously. This design enables the system to handle complex loading conditions including radial loads, reverse radial loads, and moment loads in all directions without compromising accuracy or smooth operation. The load distribution mechanism ensures that forces transfer through multiple contact points rather than concentrating stress on single elements, dramatically increasing the overall capacity compared to traditional sliding systems. Engineers can specify linear rail guide slide systems for applications requiring load capacities ranging from a few kilograms to several tons per carriage, with the ability to use multiple carriages on a single rail for even greater capacity. The rigid construction utilizing high-grade steel materials and precision manufacturing processes creates a system that maintains its geometric integrity under substantial loading conditions. Finite element analysis optimization during the design phase ensures optimal material distribution and stress flow, maximizing strength while minimizing weight and bulk. The linear rail guide slide exhibits superior resistance to deflection, maintaining straightness even under asymmetric loading conditions that would cause conventional systems to bind or lose accuracy. Dynamic load ratings account for the varying forces encountered during acceleration and deceleration phases, ensuring reliable performance throughout complete motion cycles. The ability to handle moment loads proves particularly valuable in cantilevered applications where traditional systems require additional support structures, enabling more compact and cost-effective machine designs. Shock load resistance protects against sudden impact forces that might occur during emergency stops or material handling operations, preventing damage that could compromise system accuracy or operational life. The distributed contact design also provides excellent vibration damping characteristics, reducing transmitted vibrations that could affect precision operations or create noise issues. Testing protocols verify load capacity under both static and dynamic conditions, ensuring specified ratings reflect real-world operational capabilities rather than theoretical maximums. This enhanced load capacity enables machine designers to create more versatile equipment capable of handling diverse production requirements without multiple guidance system types.

Exceptional Durability and Maintenance Efficiency

The linear rail guide slide incorporates advanced sealing technology and lubrication systems that deliver outstanding operational life while minimizing maintenance requirements throughout its service period. Multiple sealing barriers protect the precision ball bearings and raceways from contaminants including dust, chips, coolants, and moisture that typically cause premature wear in conventional guidance systems. The primary seals utilize specially formulated elastomeric compounds that maintain flexibility across temperature extremes while providing effective contamination barriers without creating excessive friction that could impair smooth motion. Secondary scraper seals remove accumulated debris before it can reach critical bearing surfaces, while labyrinth seals create tortuous paths that prevent fine particles from penetrating the bearing chambers. Internal lubrication systems ensure optimal lubricant distribution to all bearing contact points, utilizing either grease lubrication for standard applications or oil circulation systems for high-speed or high-temperature environments. The linear rail guide slide design incorporates lubrication reservoirs and distribution channels that maintain adequate lubrication levels throughout extended operational periods without requiring frequent attention. Sealed-for-life options eliminate the need for regular lubrication maintenance in many applications, reducing both labor costs and the risk of contamination during service procedures. The rolling element design inherently generates less wear compared to sliding systems, as the rolling motion distributes contact stresses over larger surface areas while avoiding the adhesive wear mechanisms that degrade sliding surfaces. Material selection utilizing through-hardened bearing steel and specialized surface treatments creates exceptional resistance to fatigue, corrosion, and abrasive wear even in challenging industrial environments. Predictive maintenance capabilities allow monitoring of system condition through vibration analysis, temperature monitoring, or integrated sensor systems that provide advance warning of potential issues before they affect production. The modular design facilitates component replacement when necessary, allowing individual carriages or rail sections to be serviced without complete system disassembly. Quality testing includes accelerated life testing that simulates millions of operational cycles under controlled conditions, validating expected service life under various operating parameters and environmental conditions.
