metal slide rail

Metal slide rails represent essential hardware components that enable smooth, controlled movement of drawers, trays, shelves, and various mechanical assemblies. These precision-engineered systems consist of multiple interconnected tracks made from high-quality steel, aluminum, or specialized metal alloys. The metal slide rail operates on a telescopic principle, where multiple sections extend and retract seamlessly to provide full or partial extension capabilities. Modern manufacturing techniques ensure these components deliver exceptional durability, load-bearing capacity, and operational reliability across diverse environments. The primary function of a metal slide rail involves facilitating linear motion while maintaining perfect alignment and stability throughout the entire range of movement. Advanced bearing systems, including ball bearings or roller mechanisms, are integrated within the rail structure to minimize friction and ensure effortless operation. These components feature sophisticated locking mechanisms that secure positions when needed, preventing unwanted movement during transportation or when maintaining specific positions. The technological features of metal slide rails include corrosion-resistant coatings, precision-machined surfaces, and engineered tolerances that guarantee consistent performance over extended periods. Many systems incorporate soft-close technology, which provides gentle deceleration as the rail approaches its fully closed position, reducing noise and preventing damage from sudden impacts. Load ratings vary significantly, with heavy-duty versions capable of supporting substantial weights while maintaining smooth operation. Applications for metal slide rails span numerous industries, including furniture manufacturing, automotive systems, aerospace applications, medical equipment, industrial machinery, and electronic enclosures. In office furniture, these rails enable smooth drawer operation in desks, filing cabinets, and storage units. Automotive applications utilize metal slide rails for seat adjustments, console compartments, and cargo management systems. Industrial equipment relies on these components for tool storage, machinery access panels, and automated conveyor systems.

New Products

VIEW DETAILS

SHF series linear shaft

VIEW DETAILS

SK series linear shaft

VIEW DETAILS

EF series ball screw end support

VIEW DETAILS

FK series ball screw end support

Metal slide rails deliver numerous practical benefits that make them superior choices for various applications requiring reliable linear movement solutions. The robust construction of these systems ensures exceptional longevity, significantly reducing replacement costs and maintenance requirements over time. Unlike plastic alternatives, metal slide rails maintain their structural integrity under heavy loads and extreme temperatures, making them ideal for demanding industrial environments. The precision engineering inherent in quality metal slide rail systems provides consistently smooth operation that improves user experience and operational efficiency. Users appreciate the effortless gliding motion that reduces physical strain when accessing heavy drawers or equipment compartments repeatedly throughout the day. The enhanced load-bearing capacity of metal slide rails allows designers and manufacturers to create more versatile storage solutions that accommodate heavier items without compromising functionality. Advanced bearing systems integrated into these rails minimize operating noise, creating quieter work environments that contribute to improved productivity and comfort levels. The corrosion-resistant treatments applied to premium metal slide rails ensure reliable performance in humid, dusty, or chemically challenging environments where untreated components would quickly deteriorate. Installation versatility represents another significant advantage, as metal slide rails accommodate various mounting configurations and can be easily adjusted to fit specific dimensional requirements. The availability of different extension lengths allows users to access the full depth of storage compartments, maximizing space utilization and improving organization capabilities. Soft-close mechanisms available in many metal slide rail systems prevent slamming, which extends the lifespan of both the rails and the furniture or equipment they serve. The professional appearance of metal slide rails enhances the overall aesthetic quality of finished products, contributing to perceived value and customer satisfaction. Temperature stability ensures consistent performance across wide temperature ranges, making these components suitable for outdoor applications, cold storage facilities, and high-temperature industrial processes. The standardized mounting patterns and dimensions of quality metal slide rails simplify replacement procedures, reducing downtime and service costs when maintenance becomes necessary.

Practical Tips

Mar

Design for OEMs: Optimize Linear Guide Rail Performance with Custom Black Oxide and Drilling.

Original Equipment Manufacturers (OEMs) across industries rely on precision motion systems to deliver exceptional performance in their machinery and equipment. The selection of appropriate linear motion components directly impacts product reliability...

Mar

Solve Heavy-Duty Wear: Custom-Designed Linear Bearings with Chrome Plating and Precision Drilling.

Industrial machinery relies heavily on precision components to maintain operational efficiency and minimize downtime. Among these critical components, the linear bearing stands as a fundamental element that enables smooth, controlled linear motion ac...

Mar

Resist Corrosion: The Benefits of Custom Nickel-Plated Linear Bearings in Chemical Processing.

Chemical processing environments present some of the most demanding operational challenges for mechanical components. Industrial facilities handling corrosive chemicals, acids, and caustic substances require precision-engineered solutions that mainta...

Feb

Withstand Daily Abuse: Custom Heavy-Duty Sliding Rails Protected by Durable Nickel Plating.

Industrial applications demand precision components that can withstand extreme conditions while maintaining consistent performance over extended periods. Heavy-duty sliding rails represent a critical element in manufacturing equipment, automation sys...

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

metal slide rail

slide guide rails

metal slide rail

linear motion slide rails

cnc slide rails

double slide rail

heavy duty ball bearing slide rails

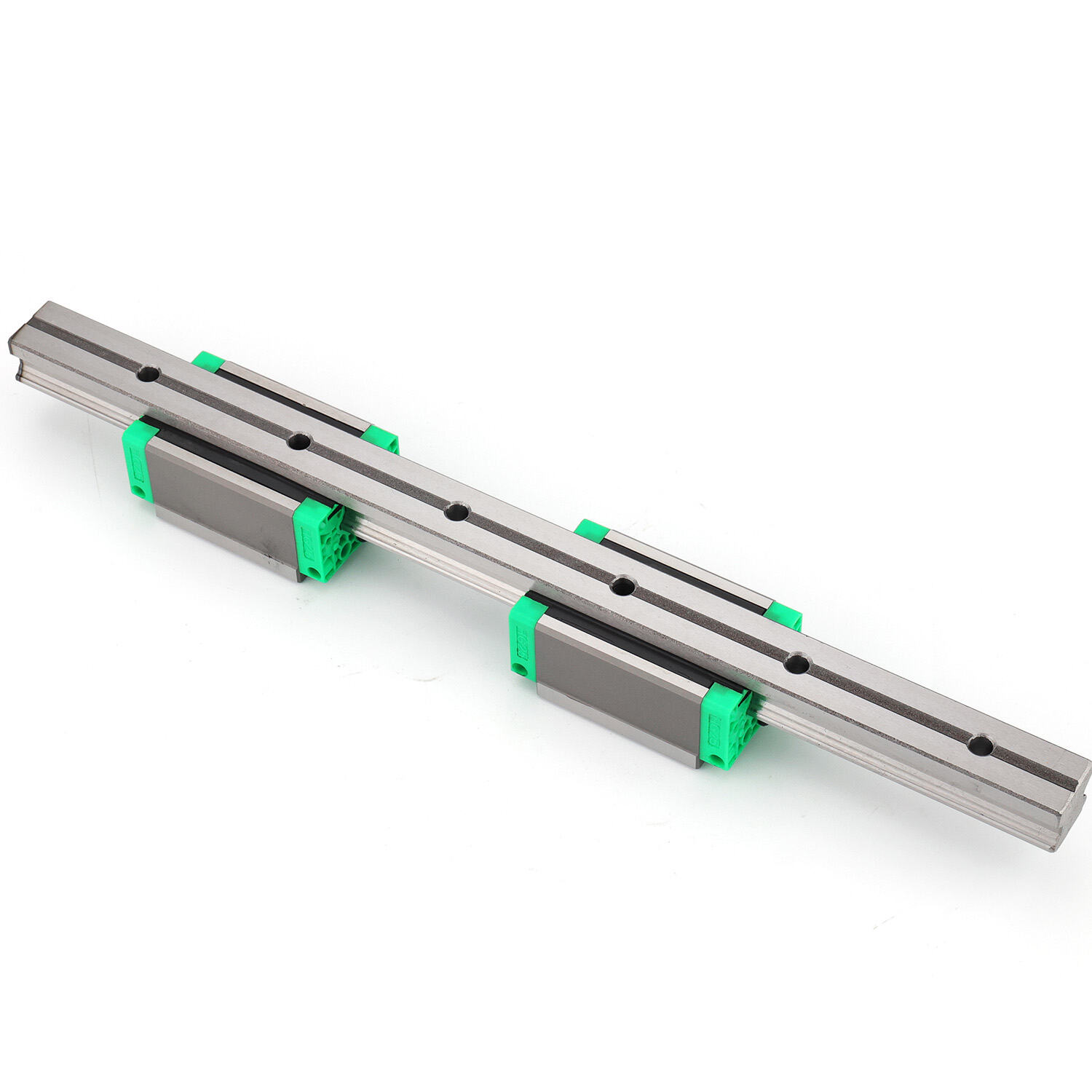

Superior Load Capacity and Structural Integrity

The exceptional load-bearing capabilities of metal slide rails set them apart from alternative materials, making them indispensable for applications requiring reliable support of substantial weights. Premium metal slide rail systems are engineered to handle loads ranging from light-duty applications supporting 50 pounds to heavy-duty industrial versions capable of supporting over 500 pounds per pair. This remarkable strength comes from the use of high-grade steel construction, precision-formed channels, and robust bearing assemblies that distribute weight evenly across the entire rail system. The structural integrity of metal slide rails remains consistent even under dynamic loading conditions, where repeated extension and retraction cycles with varying weights could stress inferior materials beyond their limits. Advanced manufacturing processes, including cold-forming and heat-treating, enhance the molecular structure of the metal components, creating rails that resist deformation and maintain precise tolerances throughout their operational lifespan. The multi-stage telescopic design of quality metal slide rails ensures that load distribution remains optimal regardless of extension position, preventing stress concentration that could lead to premature failure. Industrial applications particularly benefit from this superior load capacity, as equipment manufacturers can design more compact storage solutions that maximize space efficiency without compromising accessibility or safety. The ability to support heavy tooling, electronic components, or industrial supplies within sliding assemblies enables more ergonomic workplace designs that reduce worker fatigue and improve operational efficiency. Quality metal slide rails undergo rigorous testing protocols that simulate years of operational stress, ensuring they meet or exceed published load ratings under real-world conditions. The consistent performance under load makes metal slide rails essential components in mission-critical applications where failure could result in equipment damage, safety hazards, or costly operational interruptions.

Advanced Precision Engineering and Smooth Operation

The sophisticated engineering behind modern metal slide rails delivers unparalleled smoothness and precision that transforms user interaction with storage systems and mechanical assemblies. State-of-the-art bearing technologies, including precision ball bearing systems and specialized roller assemblies, are carefully integrated into metal slide rail designs to minimize friction and ensure effortless operation throughout the entire range of motion. The bearing races are machined to extremely tight tolerances, creating perfectly smooth surfaces that allow the bearing elements to roll rather than slide, dramatically reducing wear and operational force requirements. Advanced lubrication systems, often featuring permanent seals and long-life lubricants, maintain optimal performance characteristics for extended periods without requiring regular maintenance or re-lubrication procedures. The precision-ground surfaces of quality metal slide rails create perfectly aligned bearing paths that eliminate binding, sticking, or irregular movement that can occur with lower-quality alternatives. Soft-close technology represents a pinnacle of engineering sophistication, incorporating hydraulic or pneumatic dampening mechanisms that provide controlled deceleration as the rail approaches its fully closed position. This feature not only enhances user experience by eliminating harsh closing impacts but also significantly extends the operational lifespan of both the metal slide rail system and the furniture or equipment it serves. The smooth operation characteristics of premium metal slide rails reduce the physical effort required to operate heavy drawers or equipment panels, improving workplace ergonomics and reducing the risk of repetitive strain injuries. Precision engineering also ensures that metal slide rails maintain their smooth operation characteristics even after hundreds of thousands of operational cycles, providing consistent performance that justifies their initial investment cost. Temperature compensation features in advanced metal slide rail systems account for thermal expansion and contraction, maintaining smooth operation across wide temperature ranges without binding or looseness that could compromise performance or safety.

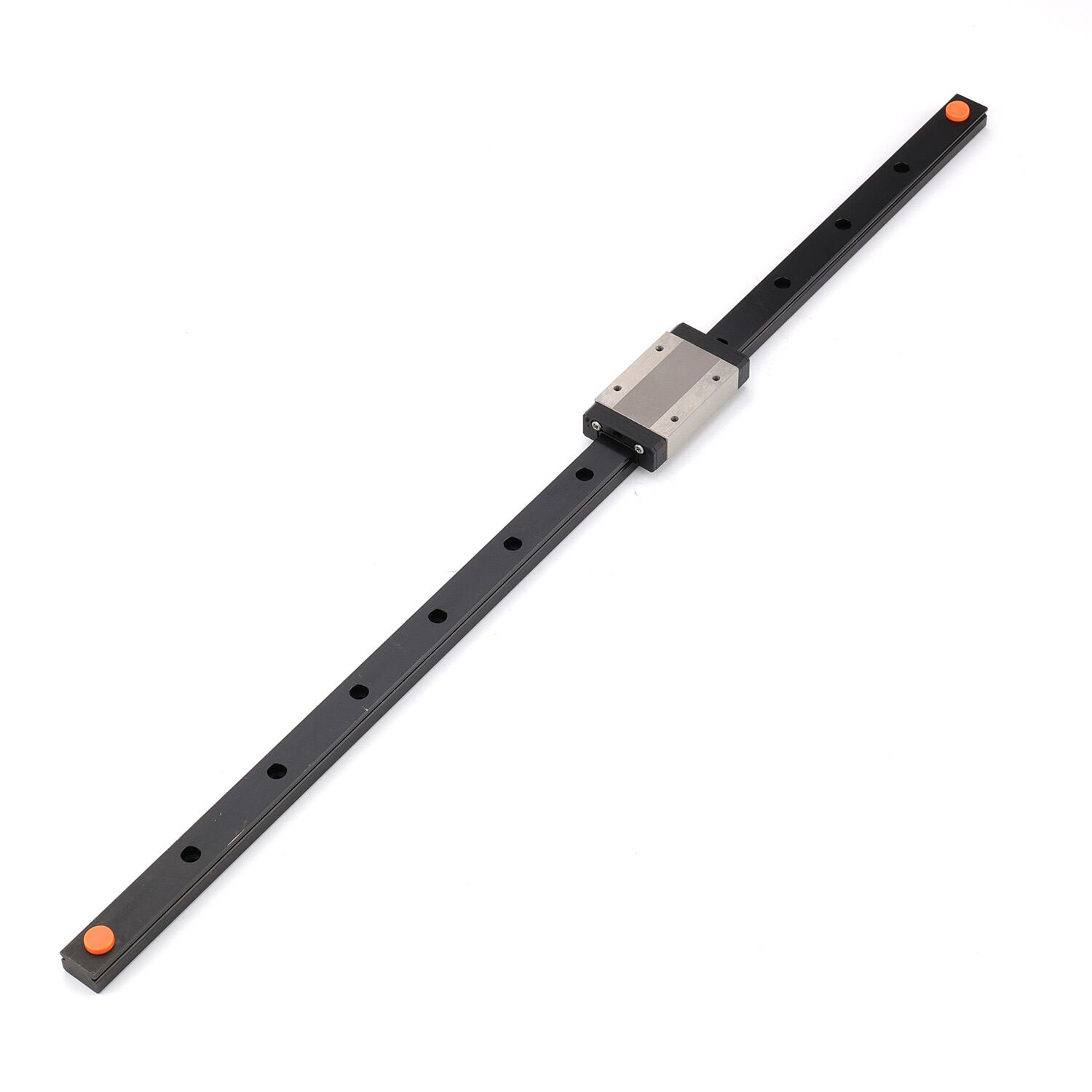

Exceptional Durability and Environmental Resistance

The outstanding durability characteristics of metal slide rails make them ideal investments for applications where long-term reliability and minimal maintenance are essential requirements. Advanced surface treatments and coating technologies protect metal slide rails from corrosion, wear, and environmental degradation that would quickly compromise the performance of untreated alternatives. Zinc plating, powder coating, and specialized corrosion-resistant finishes create protective barriers that enable metal slide rails to perform reliably in challenging environments including high humidity, chemical exposure, and outdoor applications. The inherent strength of metal construction allows these rails to withstand impact loads, vibration, and mechanical stress that would damage plastic or composite alternatives, making them particularly suitable for industrial and commercial applications. Quality metal slide rails are designed and tested to operate reliably for millions of cycles, with premium versions often carrying warranties that reflect their exceptional longevity and reliability. The resistance to wear exhibited by properly lubricated metal slide rails ensures that operational smoothness and precision are maintained throughout their extended service life, eliminating the gradual performance degradation common with other materials. Environmental sealing systems protect internal bearing assemblies and lubrication from contamination by dust, moisture, and chemical vapors, maintaining optimal performance even in harsh operating conditions. The dimensional stability of metal slide rails under temperature variations prevents binding or excessive clearance that could compromise operation in environments with significant temperature fluctuations. Fire resistance characteristics of metal construction provide additional safety benefits in applications where flame spread and toxic gas emission from burning materials could pose hazards. The recyclability of metal slide rail components aligns with modern sustainability initiatives, allowing end-of-life products to be reclaimed and reprocessed rather than contributing to waste streams. Maintenance requirements for quality metal slide rails are minimal, typically involving only periodic cleaning and occasional lubrication, reducing total cost of ownership and operational disruption compared to alternatives requiring frequent replacement or extensive maintenance procedures.
