double linear slide

The double linear slide represents an advanced mechanical positioning system that delivers precise two-axis movement control for demanding industrial applications. This sophisticated mechanism consists of two perpendicular linear guide rails that work in harmony to provide smooth, accurate motion across horizontal and vertical planes. The double linear slide integrates high-quality ball bearing technology with robust aluminum or steel construction, ensuring exceptional durability and consistent performance under heavy operational loads. The primary function of a double linear slide involves facilitating precise positioning tasks where components must move along two distinct axes simultaneously or independently. This dual-axis capability makes it indispensable for automated manufacturing processes, laboratory equipment, and precision assembly operations. The technological features of modern double linear slide systems include pre-loaded linear bearings that eliminate backlash, sealed bearing chambers that resist contamination, and adjustable mounting brackets for flexible installation configurations. Advanced models incorporate integrated lubrication systems that extend operational life while maintaining smooth movement characteristics. The double linear slide finds extensive application across multiple industries, including semiconductor manufacturing, medical device production, automated packaging systems, and precision measurement equipment. In robotics applications, the double linear slide serves as the foundation for pick-and-place operations, enabling robots to position components with sub-millimeter accuracy. Research laboratories utilize these systems for sample positioning, microscopy stages, and automated testing equipment where repeatability and precision are paramount. Manufacturing facilities employ double linear slide assemblies in CNC machining centers, automated assembly lines, and quality control stations. The versatility of the double linear slide extends to custom applications where standard single-axis solutions cannot meet complex positioning requirements, making it an essential component for engineers designing sophisticated automation systems.

Popular Products

VIEW DETAILS

WC/WCS series linear shaft

VIEW DETAILS

Linear Bearings LMK/LMF/LMH Series

VIEW DETAILS

HGH Series Linear Guideway

VIEW DETAILS

EGW Series Linear Guideway

The double linear slide offers numerous practical benefits that directly impact operational efficiency and system performance across diverse industrial applications. Cost-effectiveness stands as a primary advantage, as implementing a single double linear slide unit eliminates the need for two separate single-axis systems, reducing both initial investment costs and ongoing maintenance expenses. This integrated approach streamlines procurement processes and simplifies inventory management for maintenance teams. Enhanced precision represents another significant benefit, with modern double linear slide systems achieving positioning accuracy within micrometers while maintaining exceptional repeatability across millions of operational cycles. This level of precision translates directly into improved product quality and reduced waste in manufacturing processes. The compact design of double linear slide assemblies maximizes workspace efficiency by minimizing the footprint required for dual-axis positioning tasks. Engineers can design more efficient layouts and accommodate additional equipment within existing facility constraints, ultimately improving overall productivity. Simplified installation procedures reduce setup time and labor costs compared to configuring multiple single-axis systems. The double linear slide comes pre-aligned and tested, eliminating complex alignment procedures that typically consume significant setup time. Maintenance advantages include centralized lubrication points and unified service schedules, reducing downtime and maintenance complexity. The robust construction of quality double linear slide units ensures extended service life even under demanding operational conditions, providing excellent return on investment. Superior load capacity capabilities enable the double linear slide to handle heavier payloads than comparable alternatives, expanding application possibilities and accommodating future system upgrades without requiring complete redesign. The smooth operation characteristics minimize vibration and noise levels, creating a more pleasant work environment while protecting sensitive components from mechanical stress. Integration flexibility allows the double linear slide to interface seamlessly with various control systems, sensors, and automation platforms, providing engineers with maximum design freedom. These practical advantages make the double linear slide an intelligent choice for organizations seeking to optimize their automation investments while achieving superior performance standards.

Practical Tips

Mar

Space-Saving Design: Integrated Rail Linear Solutions with Custom Drilling and Black Oxide Treatment.

Modern manufacturing environments demand precision components that maximize efficiency while minimizing spatial footprints. Rail linear systems have revolutionized industrial automation by providing smooth, accurate motion control in compact configur...

Feb

Source Smart for OEM Production: Cost-Effective Custom Slide Rails with Chrome or Nickel Plating.

Modern manufacturing environments demand precision, reliability, and cost-effectiveness in every component selection. When it comes to linear motion systems, slide rails represent a critical infrastructure element that directly impacts production eff...

Apr

Create Your Proprietary System: End-to-End Custom Linear Guides - Select Material, Hardening, Plating, and Drilling.

Creating a proprietary system for custom linear guides requires strategic decisions across material selection, hardening processes, plating specifications, and precision drilling techniques. Manufacturing organizations that develop end-to-end custom ...

Apr

What are linear guide rails and how do they work?

Linear guide rails represent precision mechanical systems that enable smooth, controlled linear motion in countless industrial applications. These sophisticated components consist of a rail and carriage assembly that provides accurate positioning whi...

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

double linear slide

pneumatic linear slide

micro linear slide

vertical linear slide

linear slide systems

industrial linear slides

linear slides for cnc

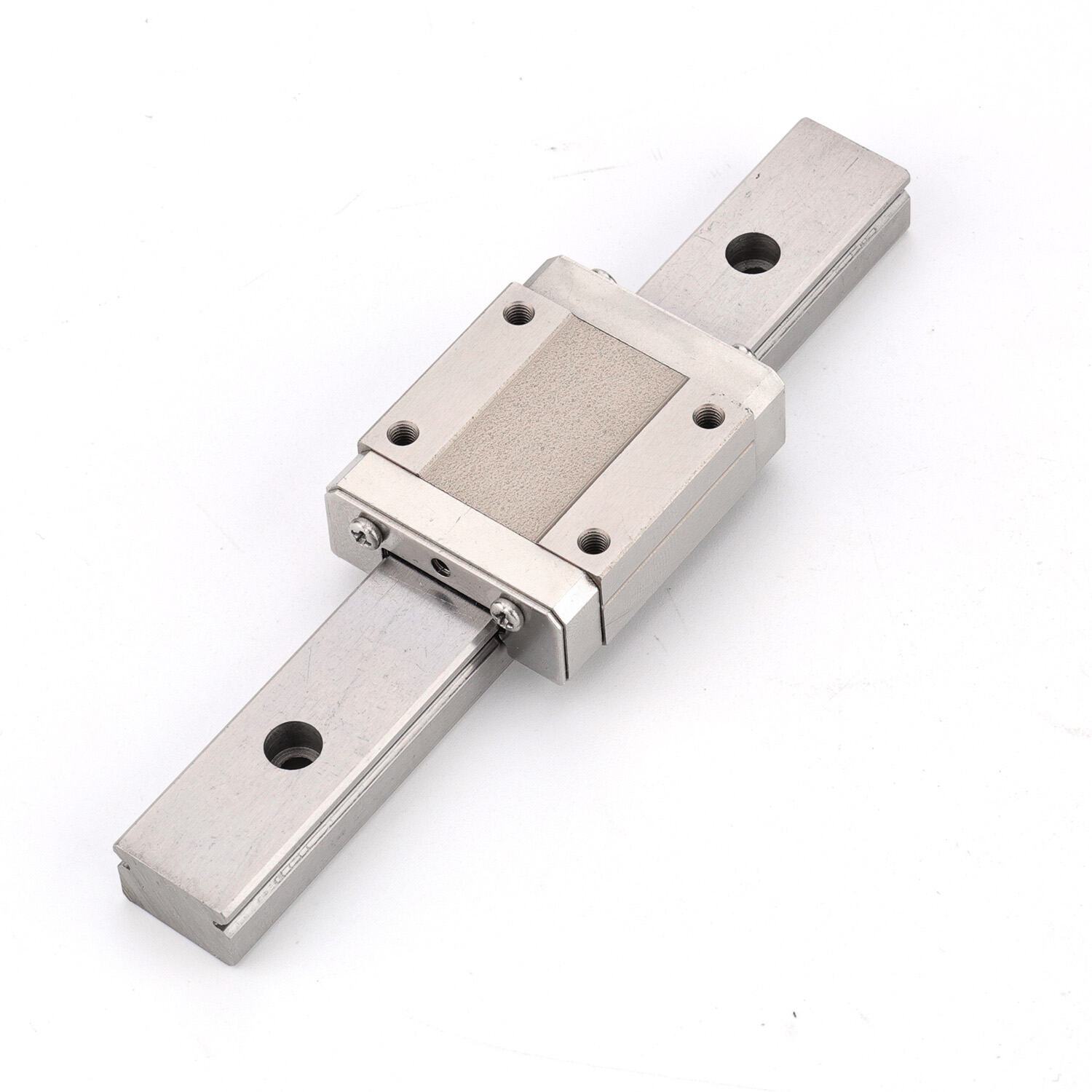

Exceptional Dual-Axis Precision Control

The double linear slide excels in delivering unmatched precision control across both horizontal and vertical axes simultaneously, making it the preferred choice for applications demanding sub-millimeter positioning accuracy. This exceptional precision stems from advanced engineering principles that incorporate pre-loaded linear ball bearings, precision-ground guide rails, and rigid mounting structures that eliminate unwanted movement or deflection. The dual-axis configuration allows operators to achieve complex positioning patterns that would be impossible or extremely difficult with single-axis alternatives. In semiconductor manufacturing applications, the double linear slide enables precise wafer positioning during photolithography processes, where even microscopic misalignments can result in costly production defects. The system maintains positioning accuracy within ±0.01mm across its entire travel range, ensuring consistent results regardless of load variations or environmental conditions. Quality control laboratories benefit tremendously from this precision capability, as the double linear slide provides the foundation for automated measurement systems that require repeatable positioning of test specimens. The advanced bearing technology eliminates backlash and stick-slip phenomena that can compromise positioning accuracy in lesser systems. Temperature compensation features maintain dimensional stability across varying operating conditions, ensuring that precision levels remain constant throughout extended production runs. The dual-axis precision control capability extends to research applications where sample positioning must be controlled with scientific-grade accuracy. Microscopy applications particularly benefit from the smooth, vibration-free movement that prevents image blur or sample displacement during critical observations. The double linear slide incorporates feedback systems that continuously monitor position and automatically correct for any deviations, maintaining target positions with exceptional stability. This level of precision control translates into improved product quality, reduced waste, enhanced measurement accuracy, and increased customer satisfaction across all application areas where the double linear slide is deployed.

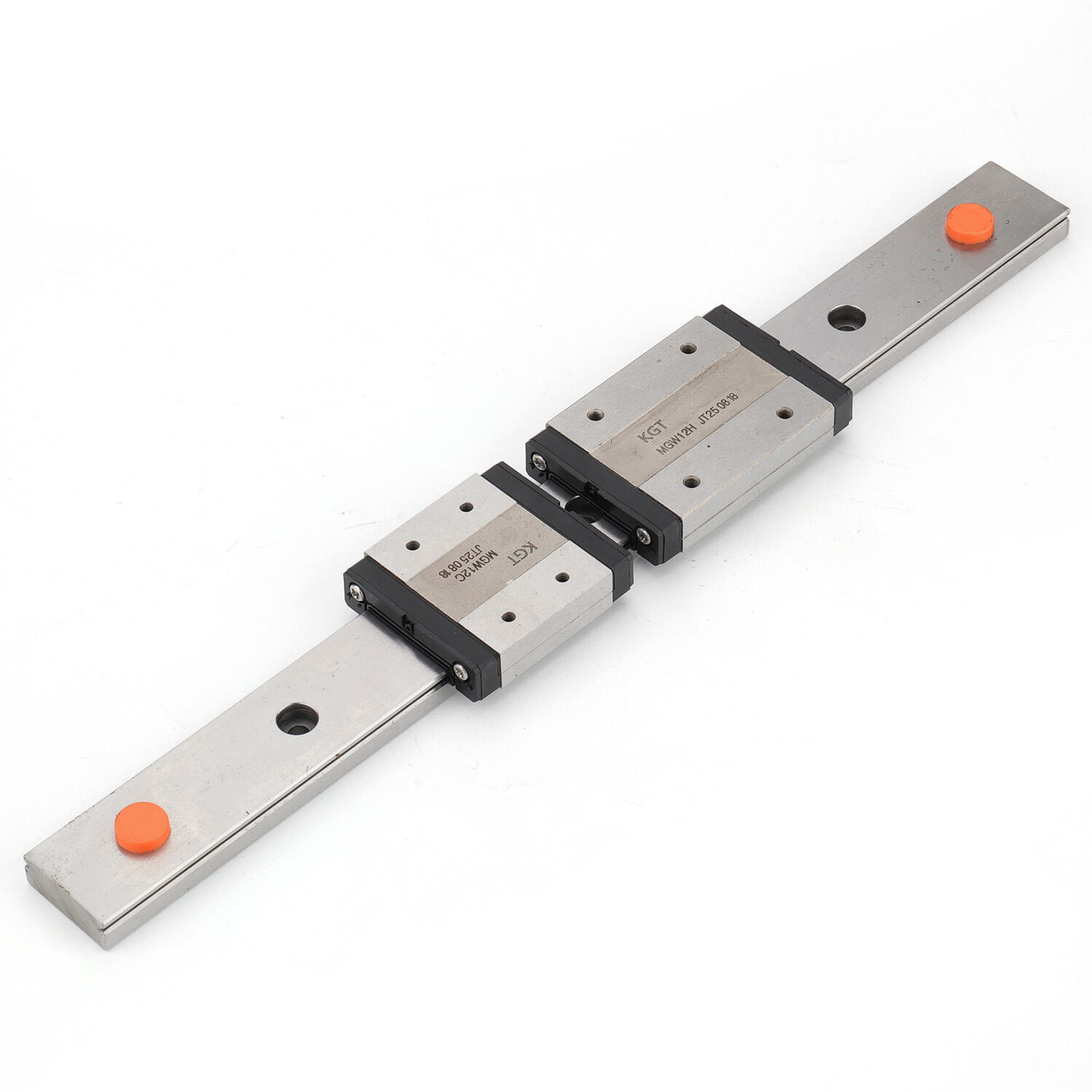

Robust Construction for Heavy-Duty Performance

The double linear slide features robust construction engineered specifically to withstand heavy-duty industrial environments while maintaining peak performance over extended operational periods. This exceptional durability results from careful material selection, advanced manufacturing techniques, and rigorous quality control processes that ensure each component meets demanding industrial standards. The guide rail construction utilizes hardened steel or premium aluminum alloys that resist wear, corrosion, and mechanical stress even under continuous operation. The double linear slide incorporates oversized ball bearings that distribute loads evenly across contact surfaces, preventing premature wear and extending service life significantly beyond standard alternatives. Industrial applications often subject positioning systems to harsh conditions including temperature extremes, contamination, and shock loads that would quickly degrade inferior systems. The double linear slide addresses these challenges through integrated sealing systems that protect critical components from dust, moisture, and chemical contamination. These protective measures ensure consistent performance in demanding environments such as automotive manufacturing, steel processing, and chemical production facilities. The structural design incorporates reinforcement ribs and cross-bracing elements that maintain rigidity under heavy loads while preventing deflection that could compromise positioning accuracy. Load capacity specifications typically exceed application requirements by significant safety margins, providing engineers with confidence that the double linear slide will perform reliably throughout its intended service life. The robust construction extends to mounting interfaces that feature multiple attachment points and oversized fasteners capable of transmitting high forces without loosening or failure. Maintenance accessibility represents another aspect of the robust design philosophy, with strategically located lubrication fittings and inspection points that enable routine maintenance without complete system disassembly. The double linear slide withstands millions of operational cycles while maintaining original specifications, making it ideal for high-volume production environments where system reliability directly impacts profitability and customer satisfaction.

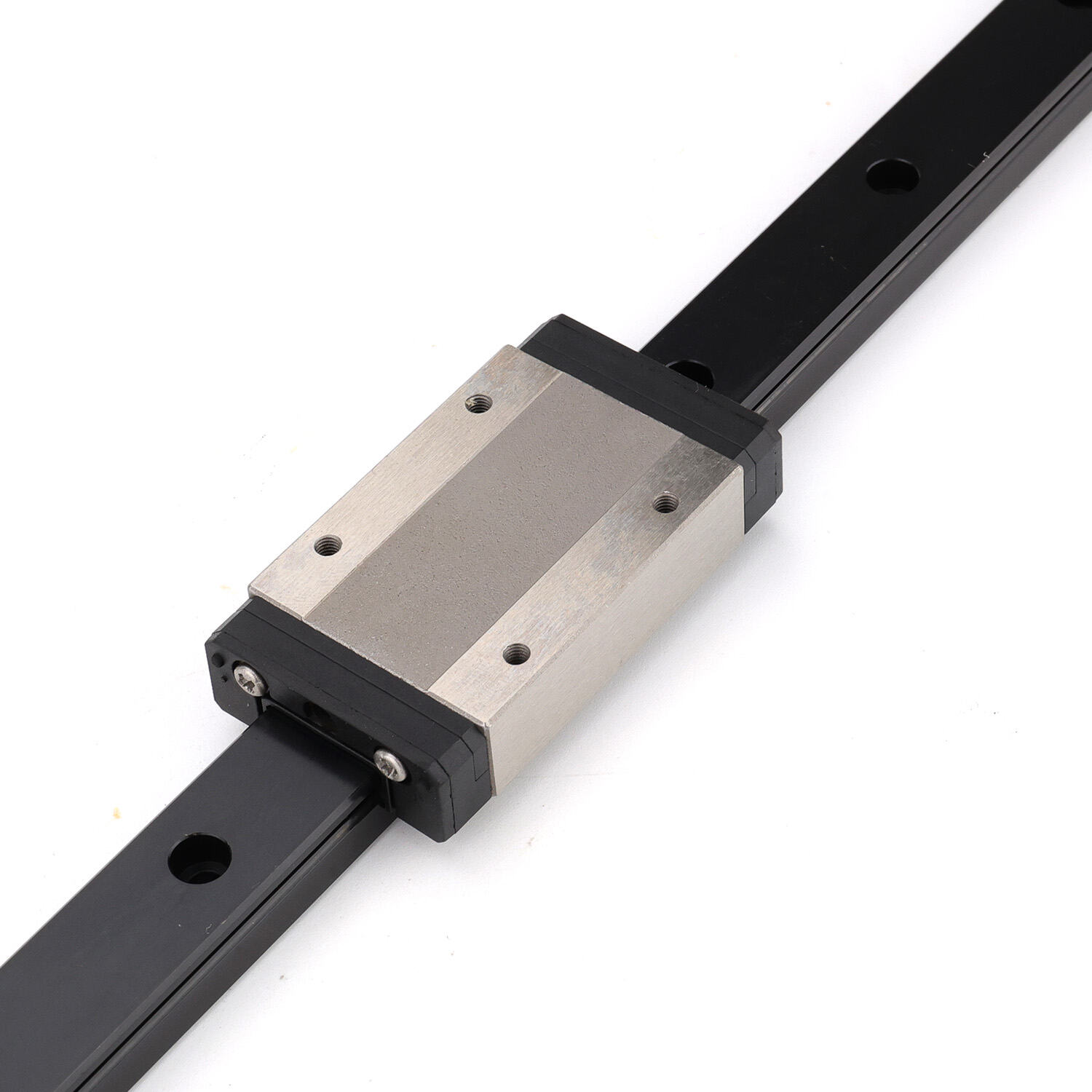

Versatile Integration and Customization Options

The double linear slide offers exceptional versatility in integration and customization, enabling engineers to adapt the system precisely to specific application requirements while maintaining optimal performance characteristics. This flexibility represents a crucial advantage in today's diverse industrial landscape where standard solutions often fall short of meeting unique operational demands. The modular design philosophy allows for extensive customization of stroke lengths, mounting configurations, and accessory integration without compromising the fundamental performance capabilities of the double linear slide. Engineers can specify custom travel distances ranging from compact desktop applications requiring minimal movement to large-scale industrial systems needing several meters of travel in each axis. The mounting versatility accommodates horizontal, vertical, or inverted orientations, providing design freedom that enables optimal system layout regardless of space constraints or operational requirements. Integration capabilities extend to numerous automation platforms through standardized interfaces and communication protocols. The double linear slide readily interfaces with programmable logic controllers, servo drives, stepper motor systems, and industrial networks, ensuring seamless integration into existing automation infrastructures. Sensor integration options include linear encoders, proximity switches, and load monitoring systems that provide real-time feedback for advanced control algorithms. The customization potential extends to specialized coatings and materials that address unique environmental challenges such as cleanroom compatibility, chemical resistance, or extreme temperature operation. Food-grade applications benefit from stainless steel construction and FDA-approved lubricants that ensure compliance with hygiene standards. The double linear slide supports various drive mechanisms including belt drives, ball screws, and rack-and-pinion systems, allowing engineers to optimize the drive train for specific speed, torque, and precision requirements. Accessory options encompass custom brackets, cable management systems, protective covers, and specialized tooling interfaces that enhance functionality while maintaining system integrity. This comprehensive customization capability ensures that the double linear slide can be tailored to meet virtually any application requirement while providing the reliability and performance characteristics that modern industrial operations demand.
