A vertical linear bearing represents a specialized mechanical component engineered to facilitate smooth, precise linear motion along a vertical axis. This sophisticated bearing system operates by utilizing rolling elements, typically ball bearings or roller bearings, housed within a raceway structure that constrains movement to a single directional plane. The vertical linear bearing serves as a critical interface between moving and stationary components in machinery, enabling controlled translation while maintaining exceptional positional accuracy and load-bearing capacity. The fundamental design incorporates multiple contact points distributed along the bearing's length, creating optimal load distribution and minimizing friction during operation. These bearings feature robust construction materials, commonly high-grade steel or specialized alloys, ensuring durability under demanding operational conditions. The vertical linear bearing integrates seamlessly with guide rails or shafts, forming a complete linear motion system capable of handling both radial and axial loads. Advanced manufacturing techniques produce bearings with precise tolerances, typically measured in micrometers, guaranteeing consistent performance across extended operational cycles. The bearing's internal geometry includes carefully engineered ball tracks or roller pathways that maintain constant contact angles, optimizing force transmission and reducing wear patterns. Lubrication systems, either integrated or external, ensure sustained smooth operation while preventing contamination and extending service life. Modern vertical linear bearing designs incorporate sealing mechanisms that protect internal components from environmental factors such as dust, moisture, and chemical exposure. These bearings accommodate various mounting configurations, allowing flexible integration into diverse mechanical assemblies. The vertical linear bearing's construction enables bidirectional movement with consistent performance characteristics regardless of travel direction, making it suitable for complex automation applications requiring precise positioning control.

New Product Recommendations

VIEW DETAILS

SFU series ball screw

VIEW DETAILS

BK series ball screw end support

VIEW DETAILS

Linear Bearings LMK/LMF/LMH Series

VIEW DETAILS

EGH Series Linear Guideway

Vertical linear bearing systems deliver exceptional precision that transforms manufacturing processes and automation equipment performance. These bearings achieve positioning accuracy within micrometers, enabling manufacturers to produce components with tight tolerances consistently. This precision directly translates to improved product quality, reduced waste, and enhanced customer satisfaction. The bearing's ability to maintain accuracy over millions of cycles ensures long-term reliability in production environments. Superior load-bearing capabilities represent another significant advantage, as vertical linear bearings handle substantial weights while maintaining smooth operation. This strength allows machinery designers to create more robust systems without compromising performance. The bearing's distributed load design prevents stress concentration, extending operational life and reducing maintenance requirements. Reduced friction characteristics provide substantial energy savings compared to traditional sliding mechanisms. The rolling element design minimizes resistance during movement, resulting in lower power consumption and reduced heat generation. This efficiency improvement contributes to environmental sustainability while decreasing operational costs. Users experience quieter operation due to the bearing's smooth motion characteristics, creating more pleasant working environments and reducing noise pollution in manufacturing facilities. Installation simplicity offers practical benefits for maintenance teams and equipment manufacturers. Vertical linear bearings typically feature standardized mounting dimensions and connection points, facilitating quick replacement and system upgrades. This standardization reduces inventory requirements and simplifies spare parts management. The bearings integrate easily with existing machinery without requiring extensive modifications. Maintenance advantages include extended service intervals and predictable wear patterns. The enclosed design protects internal components from contaminants, reducing cleaning frequency and lubrication requirements. When maintenance becomes necessary, the bearing's modular construction allows targeted component replacement rather than complete system overhaul. Cost-effectiveness emerges through extended equipment life and improved productivity. While initial investment may exceed traditional alternatives, the vertical linear bearing's durability and performance advantages generate substantial long-term savings through reduced downtime, lower maintenance costs, and improved production efficiency. The bearing's reliability minimizes unexpected failures that can disrupt production schedules and impact profitability.

Practical Tips

Feb

Handle Extreme Loads: Custom High-Capacity Linear Bearing Rail Assemblies with Durable Chrome Plating.

In today's demanding industrial environments, precision machinery requires reliable linear motion solutions that can withstand extreme loads while maintaining smooth operation. A linear bearing rail system serves as the backbone of countless automate...

Feb

Source Smart for OEM Production: Cost-Effective Custom Slide Rails with Chrome or Nickel Plating.

Modern manufacturing environments demand precision, reliability, and cost-effectiveness in every component selection. When it comes to linear motion systems, slide rails represent a critical infrastructure element that directly impacts production eff...

Mar

Withstand Harsh Chemicals: Custom Slide Linear Components in Stainless Steel with Specialized Platings.

Industrial environments that expose linear motion systems to aggressive chemicals, corrosive substances, and extreme pH conditions demand specialized solutions that go far beyond standard carbon steel components. The ability of slide linear systems t...

Apr

Create Your Proprietary System: End-to-End Custom Linear Guides - Select Material, Hardening, Plating, and Drilling.

Creating a proprietary system for custom linear guides requires strategic decisions across material selection, hardening processes, plating specifications, and precision drilling techniques. Manufacturing organizations that develop end-to-end custom ...

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

vertical linear bearing

bearing guides

bearing rails

heavy duty linear bearings

linear rails and bearing blocks

buy linear guide rail

vertical linear bearing

Unmatched Precision and Repeatability

The vertical linear bearing establishes new standards for precision in linear motion applications through its meticulously engineered design and manufacturing processes. This exceptional precision stems from advanced raceway geometry that maintains consistent contact angles between rolling elements and bearing surfaces throughout the entire range of motion. The bearing achieves positioning repeatability within ±2 micrometers, making it suitable for applications requiring extreme accuracy such as semiconductor manufacturing, precision machining, and scientific instrumentation. The precision advantage originates from strict manufacturing tolerances applied during production, where each component undergoes multiple quality control checkpoints using coordinate measuring machines and laser interferometry. This rigorous quality assurance ensures that every vertical linear bearing meets exacting specifications before shipment. The bearing's internal structure incorporates preloaded ball arrangements that eliminate backlash and play, critical factors that can compromise positioning accuracy in less sophisticated systems. Users benefit from this precision through improved product quality, reduced scrap rates, and enhanced manufacturing capabilities. In assembly operations, the precise movement enables automated systems to place components with confidence, reducing assembly errors and improving production throughput. The repeatability advantage proves particularly valuable in high-volume manufacturing where consistent positioning directly impacts product uniformity and quality metrics. Medical device manufacturers rely on this precision for producing life-critical components that must meet stringent regulatory requirements. Aerospace applications benefit from the bearing's ability to maintain accuracy under varying temperature conditions and mechanical loads. The precision characteristics remain stable throughout the bearing's operational life, ensuring consistent performance that users can depend upon for critical applications. This reliability in precision delivery translates to reduced calibration requirements and lower operational complexity for end users.

Superior Load Capacity with Smooth Operation

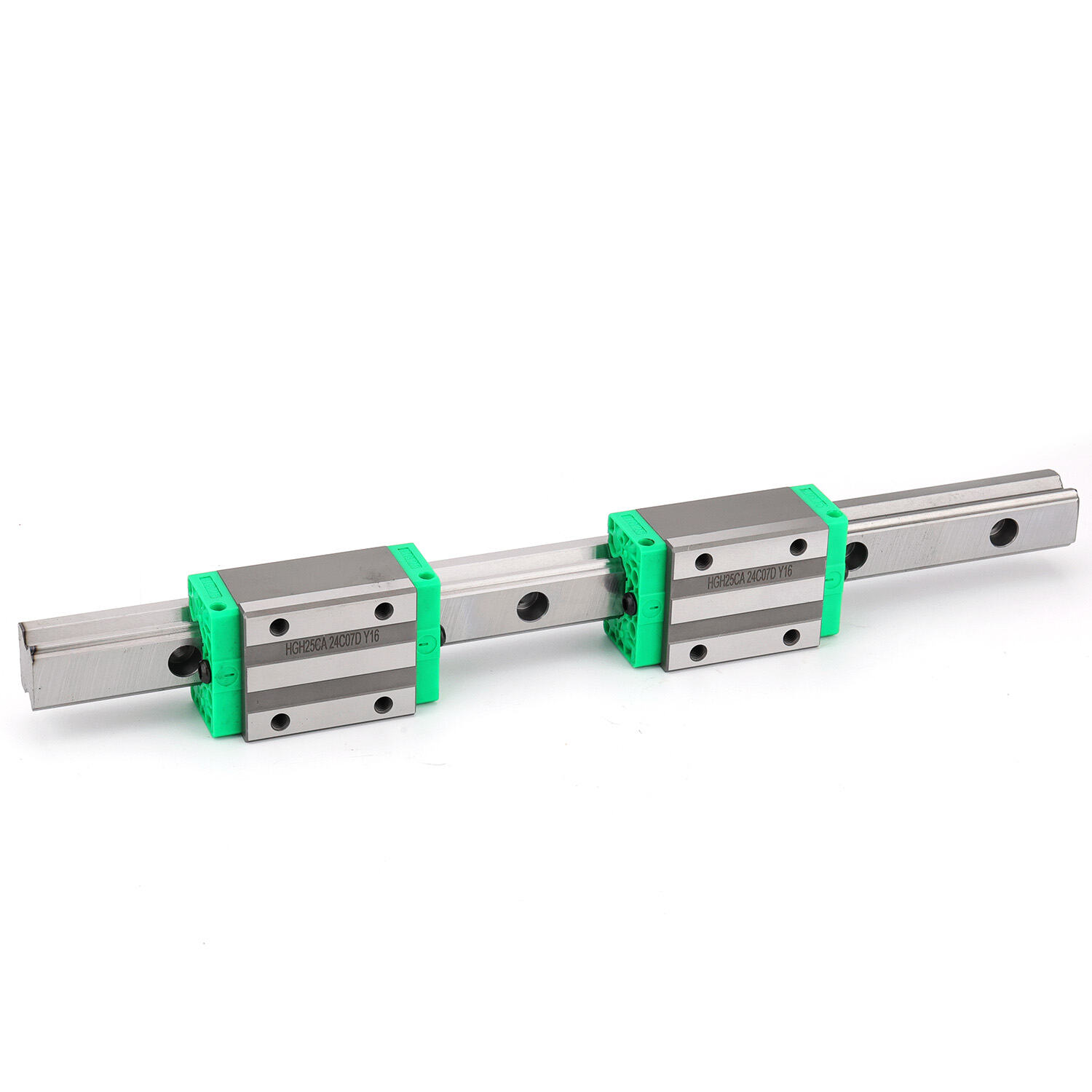

The vertical linear bearing excels in applications demanding high load capacity while maintaining exceptionally smooth motion characteristics, a combination that sets it apart from conventional linear motion solutions. This superior performance results from innovative load distribution mechanisms that spread forces across multiple contact points, preventing stress concentrations that typically limit bearing capacity. The bearing's design incorporates optimized ball complement arrangements that maximize load-carrying capacity while ensuring smooth travel throughout the stroke length. Dynamic load ratings often exceed 50,000 Newtons, enabling the bearing to support substantial payloads without compromising motion quality or operational life. The smooth operation advantage stems from precision-ground raceways that provide consistent surface finishes across the entire bearing length. These surfaces undergo specialized heat treatment processes that enhance durability while maintaining the smoothness essential for vibration-free operation. Users experience significantly reduced stick-slip phenomena compared to sliding mechanisms, resulting in more predictable motion control and improved system performance. The bearing's ability to maintain smooth operation under varying loads proves particularly valuable in applications where payload changes occur during operation cycles. Material handling systems benefit from consistent motion quality whether moving light components or heavy assemblies. The smooth operation characteristics contribute to extended equipment life by reducing vibration transmission to connected components. Machine tool applications achieve improved surface finishes on machined parts due to the bearing's vibration-dampening properties. The combination of high load capacity and smooth operation enables designers to create more compact systems without sacrificing performance. This space efficiency proves valuable in applications where installation space is limited but high performance remains essential. The bearing's load capacity remains consistent across its operational temperature range, ensuring reliable performance in diverse environmental conditions.
